Selling Price: 4200/-
MRP:
9800/-
Price Excluded GST Tax & Shipping
Model LS2208
Type of Opration 1D Laser
Scanning Type Single Line
Connectivity Type USB Cable w/ Stand
Reading Range 100 scans per second typical
+91 22-49700794 / +91 9820017966
flyer@shreesemi.com

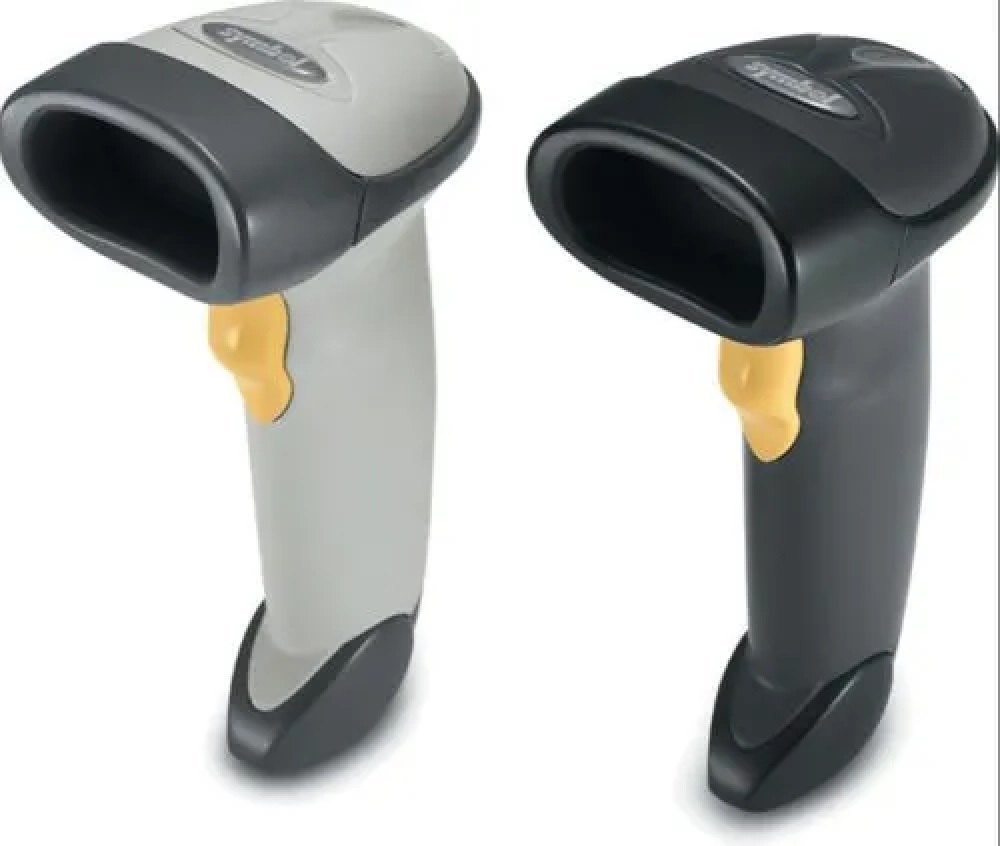

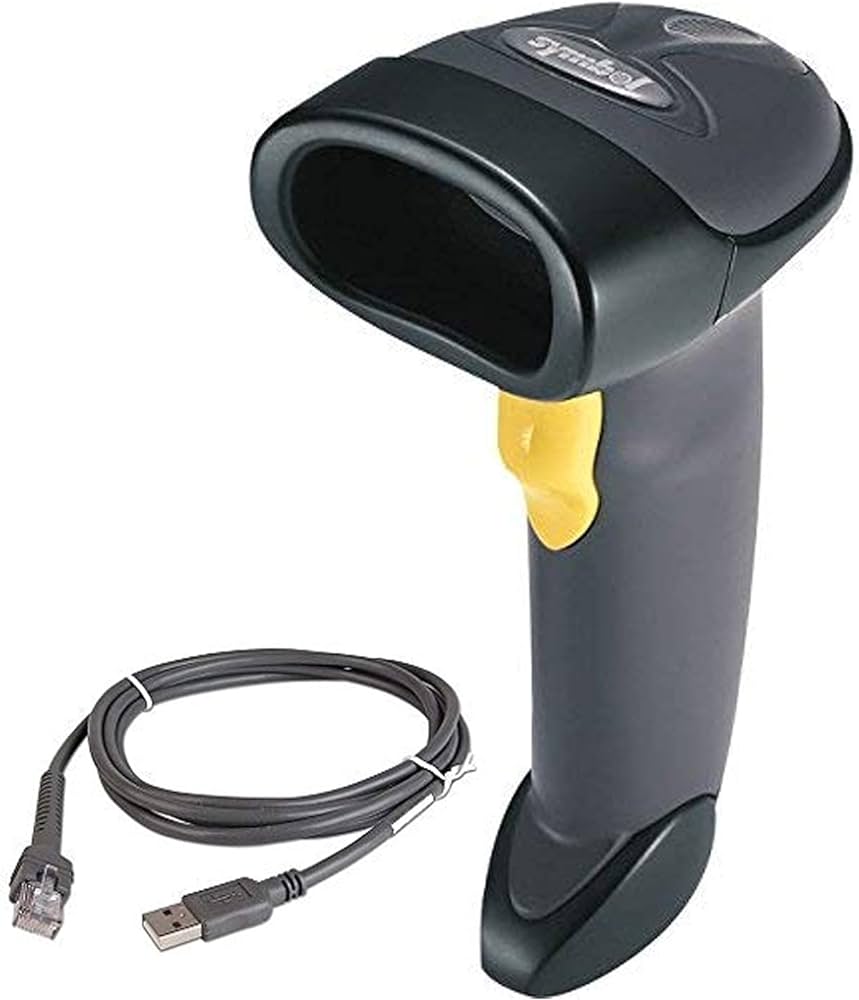

The affordable Barcode 1D Handheld Laser Scanner SRK-LS2208 provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range —from near-contact to 17 inches — makes this device ideal for retail, hospital, education or government settings. Multiple onboard interfaces ensure integration with a variety of host systems. Durable, single-board construction. Meets stringent 5-ft drop tests. Scratch-resistant tempered glass exit window. Is designed for continuous use. Accurate first-time capture of 1D bar codes. Increased productivity, resulting in shorter check-out lines. Wide working range. Delivers optimal performance to 17 in (43 cm). Multiple on-board interfaces. Simplify installation and integration and ensures future compatibility. Plug-and-play, with universal cable. Means rapid deployment, with a single cable connecting to any computing environment. Intuitive design. Minimizes setup and training time. Ergonomic, lightweight design. Reduces user fatigue with sleek, balanced form for maximum comfort and productivity. Hands-free Intelligentsia. Enables presentation scanning and easy switching between hands-free and handheld modes. Advanced Data Formatting (ADF)Enables users to modify data prior to sending to host computer, reducing costly modifications to the host software. Scan pattern-Single line. Depth of field-From to 17 in./43 cm on 100% UPC./EAN symbols. Minimum resolution-20% minimum reflective difference. Decode capability-1D, See data sheet for full list of supported symbolizes. Interfaces supported-IBM, Keyboard wedge, RS-232, Synapse, USB, Wand. Technology-Laser. Pitch2-2 +/-65 degrees. Roll (Tilt) 3-1 +/-30 degrees. Skew (Yaw)4- 3 +/-60 degrees.
|
General |
|
| Series | Symbol |
| Model | LS2208 |
| Part Number | LS2208 |
| Form Factor | Handheld |
| Connectivity | Corded |
| Scan Engine | 1D Laser |
|
Connectivity |
|
| Included Cables | USB Cable w/ Stand |
| Interfaces Supported | USB, RS232, Keyboard Wedge, IBM 468x/9x |
|
Scan Performance |
|
| Light Source | 650 nm Laser Diode Class 2 |
| Imager Field of View | N/A |
| Resolution | Minimum Element Resolution Code 39: 3.0 mil |
| Pitch | +/- 65 degree |
| Roll | +/- 60 degree |
| Yaw | +/- 10 degree |
| Scan Speed | 100 scans per second typical |
| Print Contrast Ratio (Minimum) | 20% minimum reflective difference |
| Decoding Capability | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to the Product Reference Guide for a complete list of symbologies |
|
Electrical |
|
| Input Voltage | 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply |
| Current | Operating: 175 mA (typical) Standby: 90 mA (typical) |
|
Mechanical |
|
| Color | Twilight Black |
| Dimensions | 6.00″ x 2.50″ x 3.34″ |
| Weight | 0.33 lb. |
| Drop | Unit functions normally after repeated 5.00 ft. / 1.50 m drops to concrete |
| Ruggedness | General Purpose |
| Antimicrobial | N/A |
